# lab06-VxLAN-L3 ### Task VxLAN. L3 VNI Set up an Overlay using VXLAN EVPN to provide Layer 3 connectivity between host-clients. We need to configure routing between host-client. ### **Network diagram**
![stand-plan](https://content.gitbook.com/content/t770ZYQYIfz1HzwklrwS/blobs/Q3371iA6KM2JOXEf7h8d/stand-plan.png) The lab is built using the following role-based device mapping host- linux, leaf - frr, spine - arista ### **Underlay IP Address Allocation** • Underlay addressing follows the format 10.x.y.z, where: ⁠◦ x = Data Center ID ⁠◦ y = Spine switch ID ⁠◦ z = Sequential host address per leaf connection • Host addressing uses the 172.16.x.z/24 format, where: ⁠◦ x = Leaf switch ID ⁠◦ z = Sequential host address ⁠◦ Each leaf switch uses .1 as its own IP in the corresponding subnet • Loopback addressing uses 192.168.a.b/32, where: ⁠◦ a = 1 for spine switches ⁠◦ a = 2 for leaf switches ⁠◦ b = Spine or leaf ID (assigned sequentially) • IPv6 addressing uses fd00::\[IPv4] Interconnect ipv4 ipv6 | Device A | Interface A | IPv4 A | IPv6 A | Device B | Interface B | IPv4 B | IPv6 B | | -------- | ----------- | -------------- | -------------------- | -------- | ----------- | ---------------- | ------------------ | | Spine-1 | Eth1 | 10.1.1.0/31 | fd00::10:1:1:0/127 | Leaf-1 | Eth1 | 10.1.1.1/31 | fd00::10:1:1:1/127 | | Spine-1 | Eth2 | 10.1.1.2/31 | fd00::10:1:1:2/127 | Leaf-2 | Eth1 | 10.1.1.3/31 | fd00::10:1:1:3/127 | | Spine-1 | Eth3 | 10.1.1.4/31 | fd00::10:1:1:4/127 | Leaf-3 | Eth1 | 10.1.1.5/31 | fd00::10:1:1:5/127 | | Spine-2 | Eth2 | 10.1.2.0/31 | fd00::10:2:1:0/127 | Leaf-1 | Eth2 | 10.1.2.1/31 | fd00::10:2:1:1/127 | | Spine-2 | Eth2 | 10.1.2.2/31 | fd00::10:2:1:2/127 | Leaf-2 | Eth2 | 10.1.2.3/31 | fd00::10:2:1:3/127 | | Spine-2 | Eth3 | 10.1.2.4/31 | fd00::10:2:1:4/127 | Leaf-3 | Eth2 | 10.1.2.5/31 | fd00::10:2:1:5/127 | | Host-1 | Eth1 | 172.16.1.11/24 | fd00::172:16:1:b/116 | Leaf-1 | Eth3 | access vlan red | access vlan red | | Host-2 | Eth1 | 172.16.2.12/24 | fd00::172:16:2:c/116 | Leaf-2 | Eth3 | access vlan blue | access vlan blue | | Host-3 | Eth1 | 172.16.1.13/24 | fd00::172:16:3:e/116 | Leaf-3 | Eth3 | access vlan red | access vlan red | | Host-4 | Eth1 | 172.16.2.14/24 | fd00::172:16:4:d/116 | Leaf-3 | Eth4 | access vlan blue | access vlan blue | loopback | Device | Loopback ipv4 | loopback ipv6 | | ------- | ------------- | ----------------- | | Spine-1 | 192.168.1.1 | fd00::192:168:1:1 | | Spine-2 | 192.168.1.2 | fd00::192:168:1:2 | | Leaf-1 | 192.168.2.1 | fd00::192:168:2:1 | | Leaf-2 | 192.168.2.2 | fd00::192:168:2:2 | | Leaf-3 | 192.168.2.3 | fd00::192:168:2:3 | Vlan-if | Device | VLAN id | VLANif ipv4 | VLANif ipv6 | VARP ipv4 | | ------ | ------- | ------------- | -------------------- | --------------- | | Leaf-1 | 1000 | 172.16.1.3/24 | fd00::172:16:1:3/116 | 172.16.1.100/24 | | Leaf-2 | 1001 | 172.16.2.4/24 | fd00::172:16:2:4/116 | 172.16.2.100/24 | | Leaf-3 | 1000 | 172.16.1.5/24 | fd00::172:16:1:5/116 | 172.16.1.100/24 | | Leaf-3 | 1001 | 172.16.2.5/24 | fd00::172:16:2:5/116 | 172.16.2.100/24 | Network based on ospf(underlay)+ibgp(overlay). Area ospf 0, bgp as 65500 ### **Launching a lab in the Netlab** There were no special launch requirements. To avoid mixing services and transport into a single namespace, I introduced a dedicated VRF called user, where both vlan-if interfaces were placed — allowing the hosts to communicate with each other. Since I typically work with a centralized gateway model (where L3 terminates on the border leaf), I decided to experiment with a distributed gateway to understand how it’s configured and how it forwards traffic. One caveat: the `gateway` module that handles FHRP protocols only stretches IPv4 addresses across devices. Attempts to extend this behavior to IPv6 weren’t very successful. File [Topology](https://github.com/aeangel/otus-DC-net/blob/main/lab06/topology.yml) For quick reference, here’s the inline listing:
topology.yml ```yml --- provider: clab module: [ vlan,vxlan,vrf,ospf,bgp,evpn,bfd,gateway ] plugin: [ bgp.session ] #bgp bgp.bfd: True bgp: as: 65500 rr_list: [ s1,s2 ] #mesh false rr_mesh: False gateway.protocol: anycast gateway.id: 100 #jumbo defaults.interfaces.mtu: 8192 tools: edgeshark: graphite: nodes: s1: device: eos id: 1 # bgp.rr: True loopback: ipv4: 192.168.1.1/32 ipv6: fd00::192:168:1:1/128 s2: device: eos id: 2 # bgp.rr: True loopback: ipv4: 192.168.1.2/32 ipv6: fd00::192:168:1:2/128 l1: device: frr id: 3 loopback: ipv4: 192.168.2.1/32 ipv6: fd00::192:168:2:1/128 l2: device: frr id: 4 loopback: ipv4: 192.168.2.2/32 ipv6: fd00::192:168:2:2/128 l3: device: frr id: 5 loopback: ipv4: 192.168.2.3/32 ipv6: fd00::192:168:2:3/128 h1: id: 11 device: linux h2: id: 12 device: linux h3: id: 13 device: linux h4: id: 14 device: linux #vrf vrfs: user: evpn.transit_vni: 10000 ospf: False #vlan vlans: red: vrf: user gateway: True prefix: ipv4: 172.16.1.0/24 ipv6: fd00::172:16:1:0/116 blue: vrf: user gateway: True prefix: ipv4: 172.16.2.0/24 ipv6: fd00::172:16:2:0/116 links: #spine1-leaf1,2,3 - interfaces: - node: s1 ifname: eth1 ipv4: 10.1.1.0 ipv6: fd00::10:1:1:0 ospf: password: 'spine1' bfd: true - node: l1 ifname: eth1 ipv4: 10.1.1.1 ipv6: fd00::10:1:1:1 ospf: password: 'spine1' bfd: true prefix: ipv4: 10.1.1.0/31 ipv6: fd00::10:1:1:0/127 - interfaces: - node: s1 ifname: eth2 ipv4: 10.1.1.2 ipv6: fd00::10:1:1:2 ospf: password: 'spine1' bfd: true - node: l2 ifname: eth1 ipv4: 10.1.1.3 ipv6: fd00::10:1:1:3 ospf: password: 'spine1' bfd: true prefix: ipv4: 10.1.1.2/31 ipv6: fd00::10:1:1:2/127 - interfaces: - node: s1 ifname: eth3 ipv4: 10.1.1.4 ipv6: fd00::10:1:1:4 ospf: password: 'spine1' bfd: true - node: l3 ifname: eth1 ipv4: 10.1.1.5 ipv6: fd00::10:1:1:5 ospf: password: 'spine1' bfd: true prefix: ipv4: 10.1.1.4/31 ipv6: fd00::10:1:1:4/127 #spine2-leaf1,2,3 - interfaces: - node: s2 ifname: eth1 ipv4: 10.1.2.0 ipv6: fd00::10:1:2:0 ospf: password: 'spine2' bfd: true - node: l1 ifname: eth2 ipv4: 10.1.2.1 ipv6: fd00::10:1:2:1 ospf: password: 'spine2' bfd: true prefix: ipv4: 10.1.2.0/31 ipv6: fd00::10:1:2:0/127 - interfaces: - node: s2 ifname: eth2 ipv4: 10.1.2.2 ipv6: fd00::10:1:2:2 ospf: password: 'spine2' bfd: true - node: l2 ifname: eth2 ipv4: 10.1.2.3 ipv6: fd00::10:1:2:3 ospf: password: 'spine2' bfd: true prefix: ipv4: 10.1.2.2/31 ipv6: fd00::10:1:2:2/127 - interfaces: - node: s2 ifname: eth3 ipv4: 10.1.2.4 ipv6: fd00::10:1:2:4 ospf: password: 'spine2' bfd: true - node: l3 ifname: eth2 ipv4: 10.1.2.5 ipv6: fd00::10:1:2:5 ospf: password: 'spine2' bfd: true prefix: ipv4: 10.1.2.4/31 ipv6: fd00::10:1:2:4/127 #host1 - interfaces: - node: h1 ifname: eth1 - node: l1 ifname: eth3 vlan.access: red #host2 - interfaces: - node: h2 ifname: eth1 - node: l2 ifname: eth3 vlan.access: blue #host3 - interfaces: - node: h3 ifname: eth1 - node: l3 ifname: eth3 vlan.access: red #host4 - interfaces: - node: h4 ifname: eth1 - node: l3 ifname: eth4 vlan.access: blue ```
### **Validating** This is exactly the stage where the idea emerged to place the hosts (servers) into a dedicated VRF. This allows us to inspect and present routing tables without mixing service and transport domains. Based on the topology, all hosts should be able to reach each other, including the vlan interface on all switches.
h1 pings ```txt h1:/# ping h2 PING h2 (172.16.2.12): 56 data bytes 64 bytes from 172.16.2.12: seq=0 ttl=62 time=1.160 ms 64 bytes from 172.16.2.12: seq=1 ttl=62 time=0.931 ms ^C --- h2 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 0.931/1.045/1.160 ms h1:/# ping h3 PING h3 (172.16.1.13): 56 data bytes 64 bytes from 172.16.1.13: seq=0 ttl=64 time=1.530 ms 64 bytes from 172.16.1.13: seq=1 ttl=64 time=1.136 ms 64 bytes from 172.16.1.13: seq=2 ttl=64 time=1.219 ms ^C --- h3 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 1.136/1.295/1.530 ms h1:/# ping h4 PING h4 (172.16.2.14): 56 data bytes 64 bytes from 172.16.2.14: seq=0 ttl=62 time=1.763 ms 64 bytes from 172.16.2.14: seq=1 ttl=62 time=1.621 ms 64 bytes from 172.16.2.14: seq=2 ttl=62 time=1.800 ms ^C --- h4 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 1.621/1.728/1.800 ms h1:/# ping6 h3 PING h3 (fd00::172:16:1:d): 56 data bytes 64 bytes from fd00::172:16:1:d: seq=0 ttl=64 time=2.523 ms 64 bytes from fd00::172:16:1:d: seq=1 ttl=64 time=1.141 ms ^C --- h3 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 1.141/1.832/2.523 ms h1:/# ping6 h2 PING h2 (fd00::172:16:2:c): 56 data bytes 64 bytes from fd00::172:16:2:c: seq=0 ttl=62 time=1.904 ms 64 bytes from fd00::172:16:2:c: seq=1 ttl=62 time=1.125 ms 64 bytes from fd00::172:16:2:c: seq=2 ttl=62 time=0.879 ms ^C --- h2 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 0.879/1.302/1.904 ms h1:/# ping6 h4 PING h4 (fd00::172:16:2:e): 56 data bytes 64 bytes from fd00::172:16:2:e: seq=0 ttl=62 time=2.180 ms 64 bytes from fd00::172:16:2:e: seq=1 ttl=62 time=1.397 ms 64 bytes from fd00::172:16:2:e: seq=2 ttl=62 time=1.545 ms ^C --- h4 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 1.397/1.707/2.180 ms h1:/# ping 172.16.1.100 PING 172.16.1.100 (172.16.1.100): 56 data bytes 64 bytes from 172.16.1.100: seq=0 ttl=64 time=0.115 ms 64 bytes from 172.16.1.100: seq=1 ttl=64 time=0.098 ms ^C --- 172.16.1.100 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 0.098/0.106/0.115 ms h1:/# ping 172.16.2.100 PING 172.16.2.100 (172.16.2.100): 56 data bytes 64 bytes from 172.16.2.100: seq=0 ttl=63 time=1.668 ms 64 bytes from 172.16.2.100: seq=1 ttl=63 time=0.912 ms 64 bytes from 172.16.2.100: seq=2 ttl=63 time=1.198 ms ^C --- 172.16.2.100 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 0.912/1.259/1.668 ms h1:/# ping 172.16.1.5 PING 172.16.1.5 (172.16.1.5): 56 data bytes 64 bytes from 172.16.1.5: seq=0 ttl=63 time=1.136 ms 64 bytes from 172.16.1.5: seq=1 ttl=63 time=1.136 ms ^C --- 172.16.1.5 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 1.136/1.136/1.136 ms h1:/# ping 172.16.2.4 PING 172.16.2.4 (172.16.2.4): 56 data bytes 64 bytes from 172.16.2.4: seq=0 ttl=63 time=1.110 ms 64 bytes from 172.16.2.4: seq=1 ttl=63 time=1.235 ms 64 bytes from 172.16.2.4: seq=2 ttl=63 time=0.982 ms ^C --- 172.16.2.4 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 0.982/1.109/1.235 ms ```
There’s probably no need to run additional ping tests from other hosts — they all have mutual reachability and share a common routing table. Here’s the routing table from leaf-3, which is the most illustrative since it hosts both VLANs.
leaf-3 show ip route vrf user ``` l3# show ip route vrf user Codes: K - kernel route, C - connected, L - local, S - static, R - RIP, O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP, T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR, f - OpenFabric, t - Table-Direct, > - selected route, * - FIB route, q - queued, r - rejected, b - backup t - trapped, o - offload failure IPv4 unicast VRF user: C * 172.16.1.0/24 [0/1024] is directly connected, varp-40000, weight 1, 00:21:53 C>* 172.16.1.0/24 is directly connected, vlan1000, weight 1, 00:22:00 B>* 172.16.1.3/32 [200/0] via 192.168.2.1, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.1, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.1, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.1, tvni-100 onlink, weight 1, 00:21:45 L>* 172.16.1.5/32 is directly connected, vlan1000, weight 1, 00:22:00 B>* 172.16.1.11/32 [200/0] via 192.168.2.1, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.1, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.1, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.1, tvni-100 onlink, weight 1, 00:05:21 L>* 172.16.1.100/32 is directly connected, varp-40000, weight 1, 00:21:53 C * 172.16.2.0/24 [0/1024] is directly connected, varp-40001, weight 1, 00:21:53 C>* 172.16.2.0/24 is directly connected, vlan1001, weight 1, 00:22:00 B>* 172.16.2.4/32 [200/0] via 192.168.2.2, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.2, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.2, tvni-100 onlink, weight 1, 00:21:45 via 192.168.2.2, tvni-100 onlink, weight 1, 00:21:45 L>* 172.16.2.5/32 is directly connected, vlan1001, weight 1, 00:22:00 B>* 172.16.2.12/32 [200/0] via 192.168.2.2, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.2, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.2, tvni-100 onlink, weight 1, 00:05:21 via 192.168.2.2, tvni-100 onlink, weight 1, 00:05:21 L>* 172.16.2.100/32 is directly connected, varp-40001, weight 1, 00:21:53 ```
Как видим у нас дублируются маршруты, происходит это потому что bgp evpn у нас поднят и на ipv4 и на ipv6. Уж не знаю поднимает ли кто фабрику с dual-stack evpn, но в целом идея интересная. Надо бы попробовать собрать смешанную фабрику где spine-1 ipv4 only, spine-2 ipv6 only, но отложим эксперимент на другой раз. Ниже выводы подтверждающие тезис о дублировании As we can see, route entries are duplicated — this happens because BGP EVPN is running over both IPv4 and IPv6. I’m not sure if anyone actually deploys a dual-stack EVPN fabric in production, but conceptually it’s an interesting idea. It might be worth experimenting with a mixed fabric, where `spine-1` runs IPv4-only and `spine-2` runs IPv6-only — though we’ll save that for another time. Below are the outputs confirming the route duplication caused by dual-stack EVPN advertisements.
leaf-3 show ip route vrf user ``` ====== убираем evpn peer ipv6 ====== l3# conf t l3(config)# router bgp 65500 l3(config-router)# address-family l2vpn evpn l3(config-router-af)# no neighbor fd00::192:168:1:1 activate l3(config-router-af)# no neighbor fd00::192:168:1:2 activate l3(config-router-af)# end ======= смотрим evpn пиры и проверяем количество маршрутов ======= l3# show bgp evpn summary BGP router identifier 192.168.2.3, local AS number 65500 VRF default vrf-id 0 BGP table version 0 RIB entries 15, using 1920 bytes of memory Peers 2, using 33 KiB of memory Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd PfxSnt Desc 192.168.1.1 4 65500 662 556 22 0 0 00:26:06 12 12 s1 192.168.1.2 4 65500 660 555 22 0 0 00:26:06 12 12 s2 Total number of neighbors 2 l3# show ip route vrf user Codes: K - kernel route, C - connected, L - local, S - static, R - RIP, O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP, T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR, f - OpenFabric, t - Table-Direct, > - selected route, * - FIB route, q - queued, r - rejected, b - backup t - trapped, o - offload failure IPv4 unicast VRF user: C * 172.16.1.0/24 [0/1024] is directly connected, varp-40000, weight 1, 00:26:19 C>* 172.16.1.0/24 is directly connected, vlan1000, weight 1, 00:26:26 B>* 172.16.1.3/32 [200/0] via 192.168.2.1, tvni-100 onlink, weight 1, 00:00:23 via 192.168.2.1, tvni-100 onlink, weight 1, 00:00:23 L>* 172.16.1.5/32 is directly connected, vlan1000, weight 1, 00:26:26 L>* 172.16.1.100/32 is directly connected, varp-40000, weight 1, 00:26:19 C * 172.16.2.0/24 [0/1024] is directly connected, varp-40001, weight 1, 00:26:19 C>* 172.16.2.0/24 is directly connected, vlan1001, weight 1, 00:26:26 B>* 172.16.2.4/32 [200/0] via 192.168.2.2, tvni-100 onlink, weight 1, 00:00:23 via 192.168.2.2, tvni-100 onlink, weight 1, 00:00:23 L>* 172.16.2.5/32 is directly connected, vlan1001, weight 1, 00:26:26 L>* 172.16.2.100/32 is directly connected, varp-40001, weight 1, 00:26:19 ======= возвращеаем evpn пиры ======= l3# conf t l3(config)# router bgp 65500 l3(config-router)# address-family l2vpn evpn l3(config-router-af)# neighbor fd00::192:168:1:2 activate l3(config-router-af)# neighbor fd00::192:168:1:1 activate l3(config-router-af)# end l3# show bgp evpn import-rt Show import route target route EVPN route information summary Summary of BGP neighbor status vni Show VNI l3# show bgp evpn summary BGP router identifier 192.168.2.3, local AS number 65500 VRF default vrf-id 0 BGP table version 0 RIB entries 15, using 1920 bytes of memory Peers 4, using 66 KiB of memory Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd PfxSnt Desc 192.168.1.1 4 65500 683 574 30 0 0 00:26:59 12 12 s1 192.168.1.2 4 65500 681 573 30 0 0 00:26:59 12 12 s2 fd00::192:168:1:1 4 65500 705 595 30 0 0 00:00:10 12 12 s1 fd00::192:168:1:2 4 65500 705 595 30 0 0 00:00:13 12 12 s2 Total number of neighbors 4 l3# show ip route vrf user Codes: K - kernel route, C - connected, L - local, S - static, R - RIP, O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP, T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR, f - OpenFabric, t - Table-Direct, > - selected route, * - FIB route, q - queued, r - rejected, b - backup t - trapped, o - offload failure IPv4 unicast VRF user: C * 172.16.1.0/24 [0/1024] is directly connected, varp-40000, weight 1, 00:38:55 C>* 172.16.1.0/24 is directly connected, vlan1000, weight 1, 00:39:02 B>* 172.16.1.3/32 [200/0] via 192.168.2.1, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.1, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.1, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.1, tvni-100 onlink, weight 1, 00:11:59 L>* 172.16.1.5/32 is directly connected, vlan1000, weight 1, 00:39:02 L>* 172.16.1.100/32 is directly connected, varp-40000, weight 1, 00:38:55 C * 172.16.2.0/24 [0/1024] is directly connected, varp-40001, weight 1, 00:38:55 C>* 172.16.2.0/24 is directly connected, vlan1001, weight 1, 00:39:02 B>* 172.16.2.4/32 [200/0] via 192.168.2.2, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.2, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.2, tvni-100 onlink, weight 1, 00:11:59 via 192.168.2.2, tvni-100 onlink, weight 1, 00:11:59 L>* 172.16.2.5/32 is directly connected, vlan1001, weight 1, 00:39:02 L>* 172.16.2.100/32 is directly connected, varp-40001, weight 1, 00:38:55 ```
Everything is back in place. By the way, EVPN IPv6 peering didn’t work out-of-the-box on Arista devices — I had to manually adjust the Arista EVPN template: `usr/local/lib/python3.10/dist-packages/netsim/ansible/templates/evpn/eos.j2` Now that routing between hosts is working — which was the main goal — let’s take a look at how the fabric sees the EVPN state. Here’s what spine-1 reports about our EVPN control plane:
spine-1 show evpn ``` s1#show bgp evpn vni 101000 BGP routing table information for VRF default Router identifier 192.168.1.1, local AS number 65500 Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP c - Contributing to ECMP, % - Pending best path selection Origin codes: i - IGP, e - EGP, ? - incomplete AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop Network Next Hop Metric LocPref Weight Path * >Ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 172.16.1.3 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 172.16.1.3 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fd00::172:16:1:3 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fd00::172:16:1:3 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fe80::f8c0:10c7:908e:9108 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fe80::f8c0:10c7:908e:9108 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 172.16.1.5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 172.16.1.5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fd00::172:16:1:5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fd00::172:16:1:5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fe80::5ee8:40ce:592a:2792 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fe80::5ee8:40ce:592a:2792 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.1:1000 imet 192.168.2.1 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 imet 192.168.2.1 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.3:1000 imet 192.168.2.3 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 imet 192.168.2.3 192.168.2.3 - 100 0 i s1#show bgp evpn vni 101001 BGP routing table information for VRF default Router identifier 192.168.1.1, local AS number 65500 Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP c - Contributing to ECMP, % - Pending best path selection Origin codes: i - IGP, e - EGP, ? - incomplete AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop Network Next Hop Metric LocPref Weight Path * >Ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 172.16.2.4 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 172.16.2.4 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fd00::172:16:2:4 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fd00::172:16:2:4 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fe80::67f9:517b:db31:5bad 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fe80::67f9:517b:db31:5bad 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 172.16.2.5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 172.16.2.5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fd00::172:16:2:5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fd00::172:16:2:5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fe80::e5c3:2894:3166:e3e0 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fe80::e5c3:2894:3166:e3e0 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.2:1001 imet 192.168.2.2 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 imet 192.168.2.2 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.3:1001 imet 192.168.2.3 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 imet 192.168.2.3 192.168.2.3 - 100 0 i s1#show bgp evpn vni 10000 BGP routing table information for VRF default Router identifier 192.168.1.1, local AS number 65500 Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP c - Contributing to ECMP, % - Pending best path selection Origin codes: i - IGP, e - EGP, ? - incomplete AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop Network Next Hop Metric LocPref Weight Path * >Ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 172.16.1.3 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 172.16.1.3 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fd00::172:16:1:3 192.168.2.1 - 100 0 i * ec RD: 192.168.2.1:1000 mac-ip 52dc.cafd.0300 fd00::172:16:1:3 192.168.2.1 - 100 0 i * >Ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 172.16.2.4 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 172.16.2.4 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fd00::172:16:2:4 192.168.2.2 - 100 0 i * ec RD: 192.168.2.2:1001 mac-ip 52dc.cafd.0400 fd00::172:16:2:4 192.168.2.2 - 100 0 i * >Ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 172.16.1.5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 172.16.1.5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fd00::172:16:1:5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1000 mac-ip 52dc.cafd.0500 fd00::172:16:1:5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 172.16.2.5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 172.16.2.5 192.168.2.3 - 100 0 i * >Ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fd00::172:16:2:5 192.168.2.3 - 100 0 i * ec RD: 192.168.2.3:1001 mac-ip 52dc.cafd.0501 fd00::172:16:2:5 192.168.2.3 - 100 0 i * > RD: 65500:1 ip-prefix 172.16.1.0/24 192.168.2.1 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.1.0/24 192.168.2.1 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.1.0/24 192.168.2.3 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.1.0/24 192.168.2.3 0 100 0 ? * > RD: 65500:1 ip-prefix 172.16.2.0/24 192.168.2.2 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.2.0/24 192.168.2.2 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.2.0/24 192.168.2.3 0 100 0 ? * RD: 65500:1 ip-prefix 172.16.2.0/24 192.168.2.3 0 100 0 ? * > RD: 65500:1 ip-prefix fd00::172:16:1:0/116 192.168.2.1 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:1:0/116 192.168.2.1 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:1:0/116 192.168.2.3 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:1:0/116 192.168.2.3 0 100 0 ? * > RD: 65500:1 ip-prefix fd00::172:16:2:0/116 192.168.2.2 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:2:0/116 192.168.2.2 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:2:0/116 192.168.2.3 0 100 0 ? * RD: 65500:1 ip-prefix fd00::172:16:2:0/116 192.168.2.3 0 100 0 ? ```

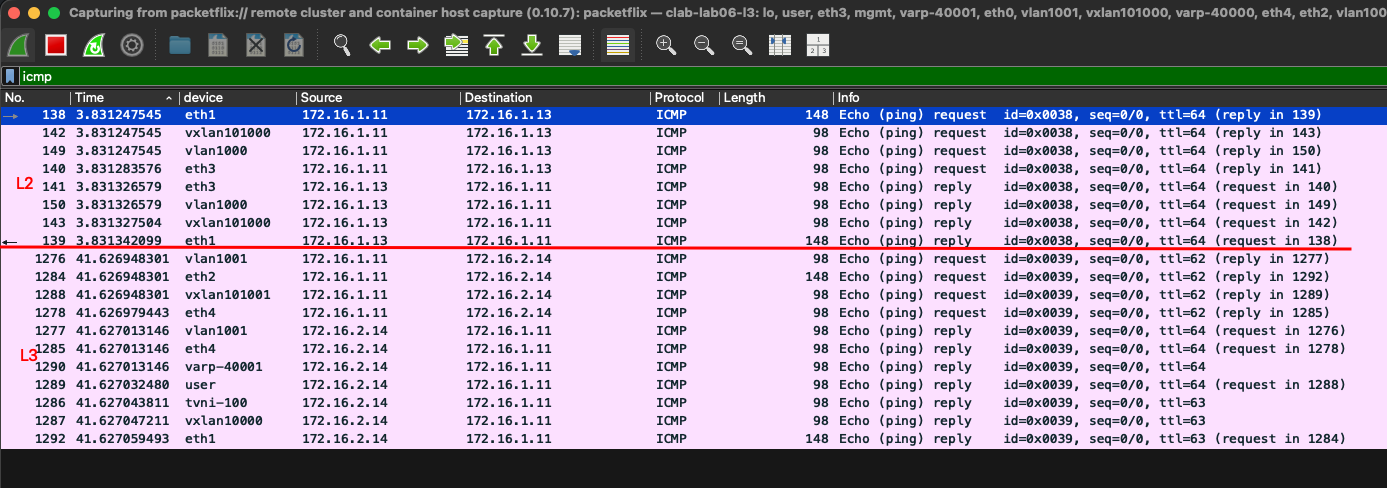

So we’ve got three VNIs - 101000, 101001 l2 domain, и 10000 bind vrf user. This setup confirms we’re using a symmetric IRB model. **Here’s what we observe in Wireshark on `leaf-3`:** * When communication occurs **within the same L2 domain**, traffic is encapsulated using a **single VXLAN VNI** (e.g., `101000` or `101001`). * When traffic crosses **between different VLANs**, a **different VNI** is used — specifically the **L3 VNI** (e.g., `10000`), which is bound to the `ip-vrf`.. * We only instantiate `vlan-if` interfaces and their associated **L2 VNIs** on the **leafs directly connected to hosts**. * For **inter-VLAN communication**, we rely on the **IP VRF** and its associated **L3 VNI**, which handles routing between VXLAN segments.
evpn routing table from leaf-1
leaf-1 show bgp evpn route ``` l1# show bgp evpn route BGP table version is 4, local router ID is 192.168.2.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal Origin codes: i - IGP, e - EGP, ? - incomplete EVPN type-1 prefix: [1]:[EthTag]:[ESI]:[IPlen]:[VTEP-IP]:[Frag-id] EVPN type-2 prefix: [2]:[EthTag]:[MAClen]:[MAC]:[IPlen]:[IP] EVPN type-3 prefix: [3]:[EthTag]:[IPlen]:[OrigIP] EVPN type-4 prefix: [4]:[ESI]:[IPlen]:[OrigIP] EVPN type-5 prefix: [5]:[EthTag]:[IPlen]:[IP] Network Next Hop Metric LocPrf Weight Path Extended Community ====L3 vrf==== Route Distinguisher: 65500:1 *> [5]:[0]:[24]:[172.16.1.0] 192.168.2.1(l1) 0 32768 ? ET:8 RT:65500:1 Rmac:de:3e:3c:f0:75:bc *>i [5]:[0]:[24]:[172.16.2.0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[24]:[172.16.2.0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[24]:[172.16.2.0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[24]:[172.16.2.0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *> [5]:[0]:[116]:[fd00::172:16:1:0] 192.168.2.1(l1) 0 32768 ? ET:8 RT:65500:1 Rmac:de:3e:3c:f0:75:bc *>i [5]:[0]:[116]:[fd00::172:16:2:0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[116]:[fd00::172:16:2:0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[116]:[fd00::172:16:2:0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [5]:[0]:[116]:[fd00::172:16:2:0] 192.168.2.2 0 100 0 ? RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 ====Leaf-1 vlan 1000==== Route Distinguisher: 192.168.2.1:1000 *> [2]:[0]:[48]:[52:dc:ca:fd:03:00]:[32]:[172.16.1.3] 192.168.2.1(l1) 32768 i ET:8 RT:65000:1000 RT:65500:1 Rmac:de:3e:3c:f0:75:bc *> [2]:[0]:[48]:[52:dc:ca:fd:03:00]:[128]:[fd00::172:16:1:3] 192.168.2.1(l1) 32768 i ET:8 RT:65000:1000 RT:65500:1 Rmac:de:3e:3c:f0:75:bc *> [2]:[0]:[48]:[52:dc:ca:fd:03:00]:[128]:[fe80::f8c0:10c7:908e:9108] 192.168.2.1(l1) 32768 i ET:8 RT:65000:1000 *> [3]:[0]:[32]:[192.168.2.1] 192.168.2.1(l1) 32768 i ET:8 RT:65000:1000 ====Leaf-2 vlan 1001==== Route Distinguisher: 192.168.2.2:1001 *>i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[32]:[172.16.2.4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[32]:[172.16.2.4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[32]:[172.16.2.4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[32]:[172.16.2.4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *>i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fd00::172:16:2:4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fd00::172:16:2:4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fd00::172:16:2:4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fd00::172:16:2:4] 192.168.2.2 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:82:cd:a3:ee:28:04 *>i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fe80::67f9:517b:db31:5bad] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fe80::67f9:517b:db31:5bad] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fe80::67f9:517b:db31:5bad] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:04:00]:[128]:[fe80::67f9:517b:db31:5bad] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *>i [3]:[0]:[32]:[192.168.2.2] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.2] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.2] 192.168.2.2 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.2] 192.168.2.2 100 0 i RT:65000:1001 ET:8 ====Leaf-3 vlan 1000==== Route Distinguisher: 192.168.2.3:1000 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[32]:[172.16.1.5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[32]:[172.16.1.5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[32]:[172.16.1.5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[32]:[172.16.1.5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fd00::172:16:1:5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fd00::172:16:1:5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fd00::172:16:1:5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fd00::172:16:1:5] 192.168.2.3 100 0 i RT:65000:1000 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fe80::5ee8:40ce:592a:2792] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fe80::5ee8:40ce:592a:2792] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fe80::5ee8:40ce:592a:2792] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:00]:[128]:[fe80::5ee8:40ce:592a:2792] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *>i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1000 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1000 ET:8 ====Leaf-3 vlan 1001==== Route Distinguisher: 192.168.2.3:1001 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[32]:[172.16.2.5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[32]:[172.16.2.5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[32]:[172.16.2.5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[32]:[172.16.2.5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fd00::172:16:2:5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fd00::172:16:2:5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fd00::172:16:2:5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fd00::172:16:2:5] 192.168.2.3 100 0 i RT:65000:1001 RT:65500:1 ET:8 Rmac:02:b6:43:39:ff:b7 *>i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fe80::e5c3:2894:3166:e3e0] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fe80::e5c3:2894:3166:e3e0] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fe80::e5c3:2894:3166:e3e0] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [2]:[0]:[48]:[52:dc:ca:fd:05:01]:[128]:[fe80::e5c3:2894:3166:e3e0] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *>i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1001 ET:8 *=i [3]:[0]:[32]:[192.168.2.3] 192.168.2.3 100 0 i RT:65000:1001 ET:8 Displayed 20 prefixes (62 paths) ```
In that output, we can clearly see: • Type 2 routes — MAC/IP advertisements for endpoints within the L2 VNI (host reachability). • Type 3 routes — Inclusive multicast routes used for BUM (broadcast, unknown unicast, multicast) replication within the L2 domain. • Type 5 routes — IP prefix routes associated with the L3 VNI, enabling inter-VLAN routing via the symmetric IRB model. Device configuration files: [Spine-1](https://github.com/aeangel/otus-DC-net/blob/main/lab06/s1.cfg) [Spine-2](https://github.com/aeangel/otus-DC-net/blob/main/lab06/s2.cfg) [Leaf-1](https://github.com/aeangel/otus-DC-net/blob/main/lab06/l1.cfg) [Leaf-2](https://github.com/aeangel/otus-DC-net/blob/main/lab06/l2.cfg) [Leaf-3](https://github.com/aeangel/otus-DC-net/blob/main/lab06/l3.cfg)
